2001 Dornier PTV/2S and PTV/4S

Contact us for price

Brazil

orCall 864-720-9333

Description

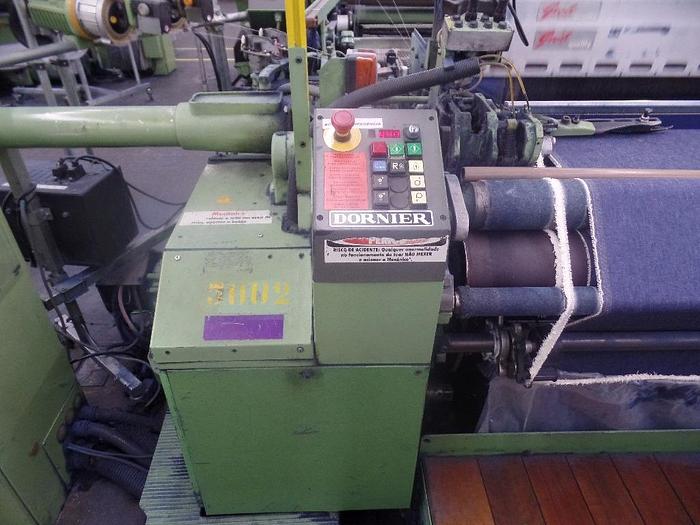

22 Dornier PTV/2S Rapier Weaving Machines



Year:  2001 - Width:  210cm
Staubli Electronic Dobby 2670 with 10 levers
Running 500 RPM
Harness Frame Capacity:  Maximum 12 with 10 levers installed
Harness Frames installed:  6
Heddles installed:  approximately 4000
Warp Stop Bars:  6 with 4000 drop wires installed
Prewinders:  2
Cloth roll:  1 with 500mm diameter
Warp Beams:  1.5 with 800mm flanges
Prewinder Switch Off
SN. 44103, 44099, 44134, 44127, 44128, 44137, 44117, 44108, 44100, 44118, 44121, 44136, 44147, 44124, 44126, 44119, 44110, 44108, 44138, 44105, 44107, 44148

6 Dornier PTV/4S Rapier Weaving Machines

Year:  2001 - Width:  210cm
Staubli Electronic Dobby 2670 with 10 levers
Running 500 RPM
Harness Frame Capacity:  20 with 10 levers installed
Harness Frames installed:  6
Heddles installed:  approximately 4000
Warp Stop Bars:  6 with 4000 drop wires installed
Prewinders:  2 installed - 4 capable
Cloth roll:  1 with 500mm diameter
Warp Beams:  1.5 with 800mm flanges
Prewinder Switch Off
SN: 43980, 43981, 44139, 44140, 44141, 44149

Specifications

ManufacturerDornier
ModelPTV/2S and PTV/4S
Year2001
ConditionUsed
