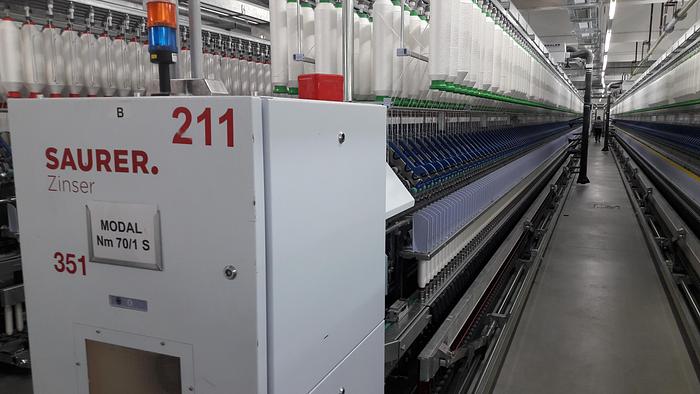

2014 Saurer Zinser 351

Contact us for price

Europe

orCall 864-720-9333

Description

3 Zinser 351 year 2014

* Make: Zinser
* Model: 351
* Year: 2014
* No. of spindles: 1152 each ring frame
* Ring diameter: 42 mm
* Gauge: 70mm
* Ring spinning type: Bracker Titan
* Ring profil: Normal
* Tube length: 230mm
* Tube conicity: 1:38
* With Co-We-Mat type 395V
* El. power: 3 x 400V, 50Hz
* Main motor: 65Kw
* With creel Zinser for flyer bobbins
* 4 rows
* Length of bobbins: 450mm
* Diameter of bobbin: max 130mm
* Draw system: PK2630SE
* Entrance upper cylinder: LP1002
* Middle upper cylinder: LP1003
* Exit upper cylinder: LP1002
* Size of upper cylinders: D19 – D30 – D28
* Coating upper cylinder: Accotex J470 round, 70o Shore
* Upper holder: OH2122
* Upper belts: Accotex 78210G
* Lower diameter cylinders : 32 – 30,5 – 32mm
* Lower belts : Accotex 78210G
* Size of lower belts: D79 x 30 x 1,1mm
* Clean cylinders
* Synchrodraft
* With suction tubes

Each ring spinning machine is  linked to winder Schlafhorst Autoconer X5 Type V
* Make: Schlafhorst
* Model: Autoconer X5
* Year: 2014
* 26 heads each machine
* Traverse: 6“ / 150mm
* Machine length: 15,043 m
* Machine width: 1,940 m
* CTS+Caddystation ( Continuous Transfer Station)
* 3 x 400V, 50Hz
* Auto Vacuum Control ( AVC)
* With splicer
* Yarn clearer: Loepfe
* 2 machines have Precy FX System
* 2 machines have standard drum system

Specifications

ManufacturerSaurer
ModelZinser 351
Year2014
ConditionUsed
